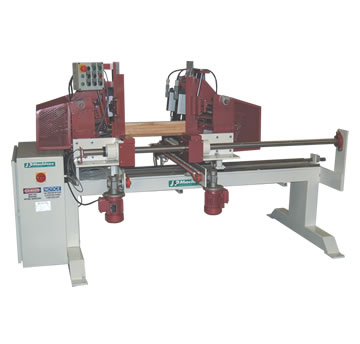

Our pocket hole grooving and boring machine is ideal for making frames in kitchen, furniture and similar industries.

The loading hopper magazine holds 25 pieces of 3/4" thick material. This machine operates automatically by feeding, stopping, clamping, grooving and boring the material in one continuous operation.

Features:

• Fast setup for grooving and boring with precision mechanical indicators to
  the accuracy of 1/10 mm.
• 4 high frequency router heads with drilling
• Closes to a minimum of 7"
• Opens to a maximum of 48" or longer upon request
• Minimum width 1½"
• Maximum width 6"
• One or two grooves per side can be selected
• Other sizes available upon request
• High-frequency motors with ½" collets, adjustable from 12,000-18,000 rpm
  with electronic inverter

Specifications:

• PLC controls
• Precision linear bearings in open and closing base
• Produces approximately 10 - 15 pieces per minute
• Requires one operator
• 220/440 volts 3 phase
• 90 psi air required
• Dust collector hoods
• Dimensions 90" long x 36" wide x 55" high
• Weight approx. 2000 lbs
