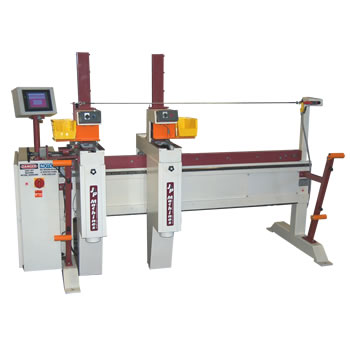

You Have Request Info On the Following Model(s): DH-3, 4HTS430, Custom-Machines, Click Here to receive an information package or continue surfing to request info on additional models.   Fast Effortless Hinge Inserting Fast setup from small to large doors with preset stops Cycle time approximately 4 seconds "Off The Shelf" components for hassle free maintenance Minimum distance between hinges is 6.5" (165mm) Optional servo controlled positioning for fast changeover of sizes DH-2NA Automatic Hinge Inserting Machine (With Auto-Position Control) Double Head For Medium To High Volume Production     Features: Fast setup from small to large doors User-friendly movable head which is easy to move to the pre-set stops Pneumatic lock allows drilling at any distance Quick change hopper magazines with a loading capacity of 35 hinges Insertion slide with UHMW non-wearing plastic Creates chip-free bores on melamine and other sensitive materials by drilling from below Boring heads with hard gears and spindles Linear bearings on slides for up and down movement No tools required for precision depth adjustments Double safety controls with metal detectors and photo eye, prevents boring unit from cycling again into the previously installed hinge Dust extraction hoods with 4" diameters Minimum closing distance between heads is 7", 180mm Maximum opening distance is 60", 1520mm (other sizes available upon request) PLC control and proximity sensors Emergency cord switch 2 HP motors, 3600 RPM, 220-440, 600V 3-phase Cycle time approximately 4 seconds Compressed air 90 PSI Weighs approximately 600kg Dimensions: 80" long, 32" wide, 50" high
