| Overview
Accurate mitre cuts are easier than ever

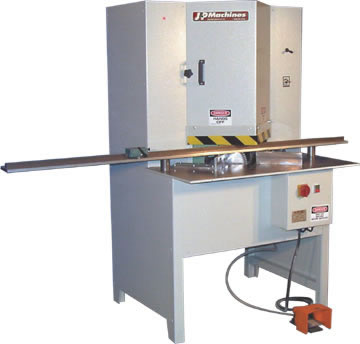

with our double mitre saws. The Automatic Vertical Precision
Double Mitre Saw has been specifically
designed to cut the left and the right joins of a frame at
the same time, allowing for a more accurate cut. This
saw is excellent for any notching requirement.
An automatic vertically operating clamp
locks the piece you are cutting in place before the blades
come down. The decent speed of the blades gives maximum
cutting precision with any type of material.
The saw motor holder and base are mounted
on 11/4” diameter vertical rods and are equipped with
maintenance free precision linear bearings.
Features:
- Mitre cutting
capacity: Model EHP 16
- Width: 5” x 5”
- Height: 5”
- Notching capacity: Model EHP 18
- Width: 7” x 7”
- Height: 5”
- Motors 3 Hp. 3450 RPM
- Totally enclosed motor
- 220, 440 or 600 volts
- 3 phase 60 Hz.
- Weight: 400 Kg. (840 lbs.)
- Production rate of up to 10 cycles
per
minute.
