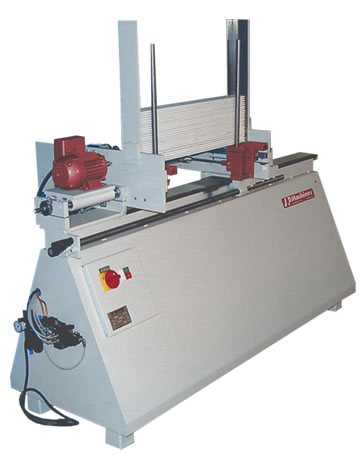

• Fully automatic drilling machine for louver blades in 3 different widths that can be changed quickly
• Loading magazine holds approximately 50 pieces
• Machine works automatically by picking a piece from the magazine, positioning it into the drilling station, and extracting automatically to the out feed bars
• Machine stops automatically when magazine is empty
• Easy to operate and fast change over
• Drills Approximately 20 pieces per minute
• One operator required

Specifications:

• 110V, single phase
• 2 motors, 1/3 HP each
• 90 lbs air required
• Linear bearings in boring heads
• Minimum opening 8", maximum 36"
• PLC controls
• Size of machine: 48" wide, 72" long 50" high
• Colour: white
• Weight: approximately 350 lbs
